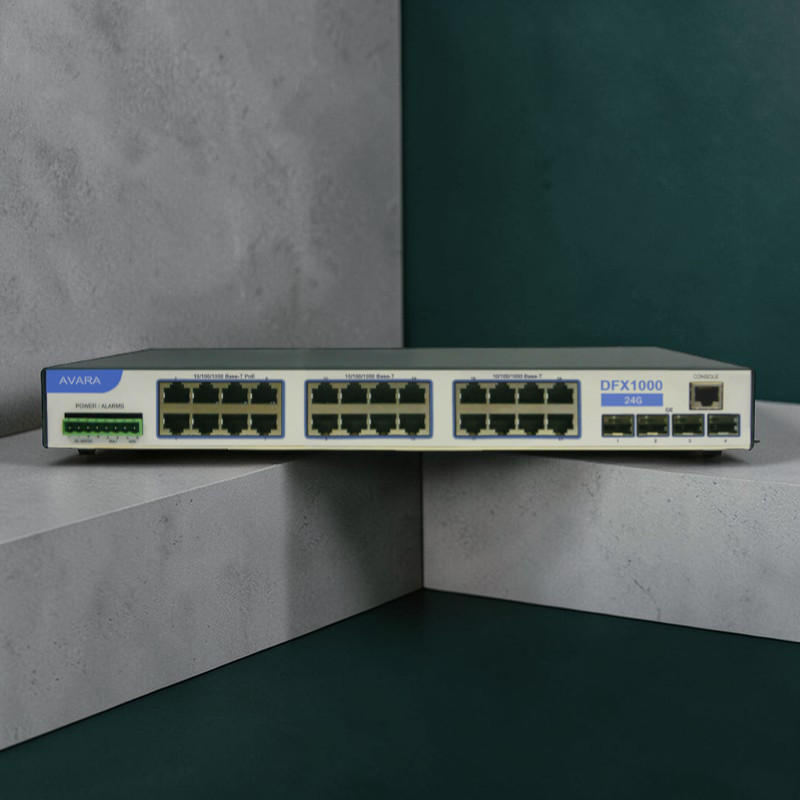

DFX1000 – Ethernet Access / Ethernet Over Fiber

The Avara DFX1000 provides Switched Ethernet, E1 and Serial data interfaces for transmission over optical fibre at gigabit transmission speeds. For existing PDH networks that require a cost-effective upgrade to support gigabit Ethernet speeds, the DFX1000 provides an effective solution. Designed to provide a reliable solution that can withstand the high temperatures and harsh environments typically found in electricity substation and rail environments. The DFX1000 is fully manageable via SNMP, HPOV, HTTP and TELNET, or CLI. The DFX1000 can operate in point to point and loop network topologies.

Brochure Diagram

Description

Technical Highlights:

Interfaces

4 x 10/100Base-T Ethernet Ports
4/8 x G.703/2M E1Ports
2 x V.11 Serial Data Ports supporting asynchronous operation (plug-in version only)
2 x 1000Base-FX (SFP based) Network Interfaces
1 x 1000Base-FX (SFP based) Tributary Interface (plug-in version only)
Supports Single Fibre and Dual Fibre Working

Key Features

Point to point, linear and ring topology support
Sub 50ms protection switching in ring mode
Supports multiple external PRC synchronisation inputs
High performance Ethernet layer 2 switch fabric with 802.1p/q VLAN capabilities
Rate Limiting on Ethernet ports
Supports both VLAN access ports as well as trunk ports
High MTBF
Management via Q1, SNMP, Telnet, CLI, Web Browser, HPOV
20-72 VDC Power Supply
-5 to +65 °C operation
