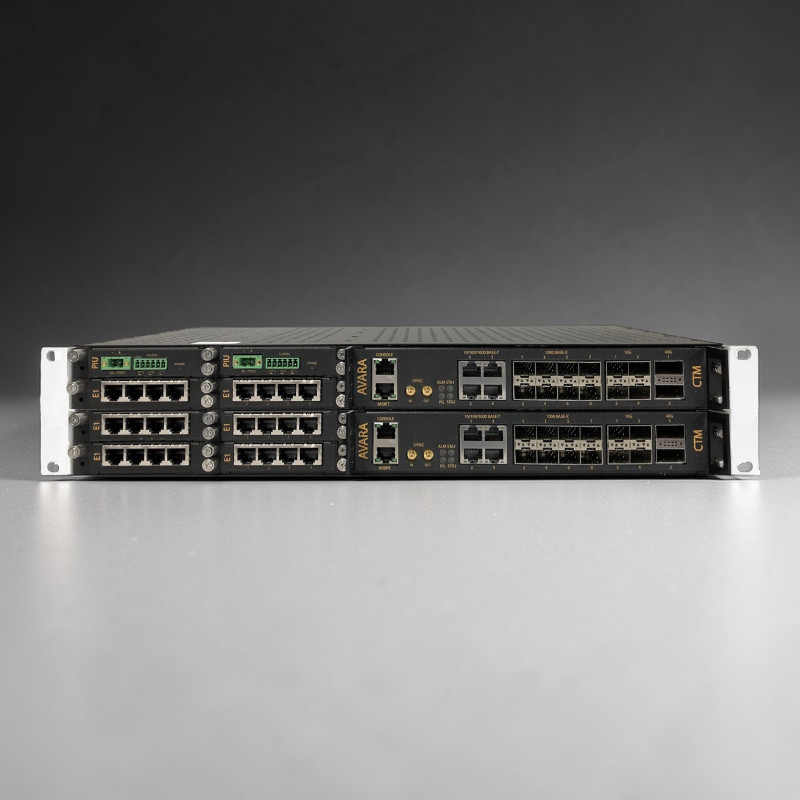

OMP8810 Multiservice Access & Transport Node
OMP8810 Multiservice Access & Transport Node
The Avara OMP8810 Multi-Service Platform delivers industry-leading MPLS-TP with pseudowire capabilities in a compact format with the ability to reliably groom and aggregate multiple services onto 1G, 10G and 40G packet transport infrastructure. The OMP8810 platform has been specifically designed to provide a compact solution for transporting switched Ethernet and E1 circuits over packet based MPLS-TP networks for mission critical, high availability applications.
Description
Technical Highlights:
Characteristics
- 10-slot version supporting a variety of interface modules
- Up to two controller & trunk units with 1G/10G uplinks
- Seven slots available for interface cards
- One slot for power
- Supports Single Fibre and Dual Fibre Working
Interface Modules Supported
- E1 G.703/G.704
- 10/100/1000Base-T
- 1000Base-X
- VF E&M + LB
- FXO/FXS
- G.703/64K
- Serial Data
- C37.94 Teleprotection
Key Features
- Point to point, linear and ring topology support
- Operates over direct fibre, Ethernet, IP/MPLS or MPLS-TP based packet switched networks
- Provides LER and LSR functions
- Sub 50ms protection switching in ring mode
- Supports multiple external PRC synchronisation inputs
- High performance Ethernet layer 2 switch fabric with 802.1p/q VLAN capabilities
- Rate Limiting on Ethernet ports
- Supports VLAN access ports as well as trunk ports
- RADIUS for AAA support
- Alarm & Event logging via Syslog
- Manageable via SSHv2, Telnet, SNMP V1/V2C/V3 & ASPeCT
- High MTBF
- Fan less operation
- -20 to -72 VDC Power Supply
- -20 to +65 °C operation
